Digital Value Chain 🚀

Project Overview

A full-stack serverless e-commerce platform demonstrating enterprise-level architecture, modern development practices, and intelligent cost optimization through scalable cloud solutions. This project showcases real-world problem-solving capabilities through a complete serverless application built collaboratively with ChatGPT and Claude AI assistants.

💰 Cost-Optimized Production Architecture

🏗️ Intelligent Resource Management

This project demonstrates enterprise-grade cost optimization through strategic infrastructure lifecycle management:

This approach showcases both advanced full-stack development capabilities and cloud financial engineering expertise.

💸 Cost Breakdown & Optimization

🏢 Real-World Business Application

This architecture pattern is ideally suited for enterprise digital marketplaces where organizations need to:

Digital Product Catalog Management

Key Business Benefits:

Example Implementation: A global healthcare company could use this pattern to create a partner portal where:

The serverless architecture ensures the platform remains responsive whether serving 100 or 100,000 concurrent users, making it perfect for enterprise environments with unpredictable usage patterns.

🏗️ Architecture Highlights

📋 Deployment Evidence & Validation

🔍 Production Deployment Documentation

Complete evidence of successful full-stack deployment with comprehensive screenshots and logs:

Frontend Deployment:

Backend & Infrastructure:

Production URLs (Deployment Evidence):

All screenshots generated during live production deployment and validation phases.

🎯 Key Features

Frontend Capabilities

Backend Capabilities

DevOps & Infrastructure

🏛️ System Architecture

┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   React Frontend│────│  API Gateway    │────│  Lambda Functions│
│  (Screenshots)  │    │   (Validated)   │    │   (Validated)   │
└─────────────────┘    └─────────────────┘    └─────────────────┘
                                │                        │
                                │                        │
                       ┌─────────────────┐    ┌─────────────────┐
                       │    DynamoDB     │    │   Stripe API    │
                       │   (Production)  │    │  (Framework)    │
                       └─────────────────┘    └─────────────────┘
                               │
                    ┌─────────────────┐
                    │ Cost-Optimized  │
                    │   Management    │
                    └─────────────────┘

📁 Project Structure

digital-value-chain/
├── backend/
│   ├── app.py                 # Original FastAPI version
│   ├── lambda_handler.py      # Lambda-compatible handler
│   └── requirements.txt       # Python dependencies
├── frontend/
│   ├── src/
│   │   ├── App.jsx           # Main React component
│   │   └── main.jsx          # Application entry point
│   ├── index.html            # HTML template
│   ├── package.json          # Node.js dependencies
│   └── vite.config.js        # Vite configuration
├── infra/
│   └── template.yaml         # SAM CloudFormation template
├── scripts/
│   └── seed_offers.py        # Database seeding utility
├── screenshots/              # **DEPLOYMENT EVIDENCE**
│   ├── dashboard-empty.png   # Empty dashboard state
│   ├── dashboard-populated.png # Dashboard with offers
│   ├── api-health.png        # API endpoint response
│   ├── cloudformation.png    # AWS stack deployment
│   ├── vite-server.png       # Development server
│   └── fastapi-backend.png   # Backend server logs
└── README.md                 # This documentation

🔌 API Endpoints (Production Validated)

Method Endpoint Description Status
GET / Health check endpoint ✅ Validated
GET /offers List all available offers ✅ Validated
POST /offers Create new offer ✅ Validated
POST /checkout Initialize Stripe checkout session 🔧 Framework Ready
POST /stripe/webhook Handle Stripe payment webhooks 🔧 Framework Ready

Example API Usage (Reactivation Ready)

# Production endpoints (reactivation required for live testing)
# List offers
curl https://f59moopdx0.execute-api.us-east-1.amazonaws.com/offers

# Create new offer
curl -X POST https://f59moopdx0.execute-api.us-east-1.amazonaws.com/offers \
  -H "Content-Type: application/json" \
  -d '{"sku": "premium-001", "name": "Premium Plan", "price": 99.99}'

🛠️ Installation & Setup

Prerequisites

Quick Start (Cost-Optimized Development)

  1. Clone the repository
    git clone https://github.com/yourusername/digital-value-chain.git
cd digital-value-chain
  2. Deploy Backend Infrastructure
    cd infra
sam build
sam deploy --guided
  3. Setup Frontend
    cd ../frontend
npm install
npm run dev -- --host
  4. Seed Database (Optional)
    cd ../scripts
python3 seed_offers.py

Cost Management Note: EC2 instances can be stopped after development/testing to avoid continuous charges. All infrastructure can be reactivated instantly using the provided SAM templates.

🚨 Major Technical Challenges & Solutions

This project demonstrates real-world problem-solving through complex technical challenges:

1. Port Conflicts

Challenge: Backend port 8000 already in use during development

# Solution: Process identification and cleanup
lsof -i :8000
pkill -f "process_name"

2. AWS Credentials Configuration

Challenge: Multiple credential conflicts between AWS CLI and IAM roles

# Solution: Proper IAM role attachment and credential cleanup
aws configure list
aws sts get-caller-identity

3. Python Runtime Compatibility

Challenge: SAM template specified python3.11 but EC2 had python3.9

# Solution: Updated template.yaml
Runtime: python3.9  # Changed from python3.11

4. Lambda Handler Format Issues

Challenge: FastAPI code incompatible with Lambda execution

# Solution: Created separate lambda_handler.py
def lambda_handler(event, context):
    # Proper AWS Lambda event handling
    return {
        "statusCode": 200,
        "headers": {"Access-Control-Allow-Origin": "*"},
        "body": json.dumps(response_data)
    }

5. DynamoDB Data Type Conflicts

Challenge: Python float types not supported by DynamoDB

# Solution: Data type conversion function
from decimal import Decimal

def convert_float_to_decimal(obj):
    if isinstance(obj, float):
        return Decimal(str(obj))
    return obj

6. CORS Configuration

Challenge: Frontend blocked by CORS policy

# Solution: Comprehensive CORS in SAM template
Globals:
  HttpApi:
    CorsConfiguration:
      AllowOrigins: ["*"]
      AllowMethods: ["GET", "POST", "PUT", "DELETE"]
      AllowHeaders: ["Content-Type", "Authorization"]

7. CloudFormation Stack Conflicts

Challenge: Failed deployments due to resource conflicts

# Solution: Stack cleanup and proper naming
aws cloudformation delete-stack --stack-name digital-chain-stack
aws cloudformation wait stack-delete-complete --stack-name digital-chain-stack

🎓 Learning Outcomes & Technical Skills Demonstrated

Core Technologies

DevOps & Cloud

Problem-Solving Skills

🔄 Application Flow & Features

Complete User Journey (Screenshots Documented)

  1. Dashboard Loading: React app fetches offers from DynamoDB via API Gateway
  2. Empty State Handling: Professional interface with clear call-to-action
  3. Sample Data Creation: One-click button to populate the database
  4. Real-time Updates: Frontend automatically refreshes to show new data
  5. API Integration: All operations go through serverless Lambda functions

Demonstrated Capabilities

Frontend Features:

Backend Features:

Infrastructure Features:

Screenshot Purpose Status

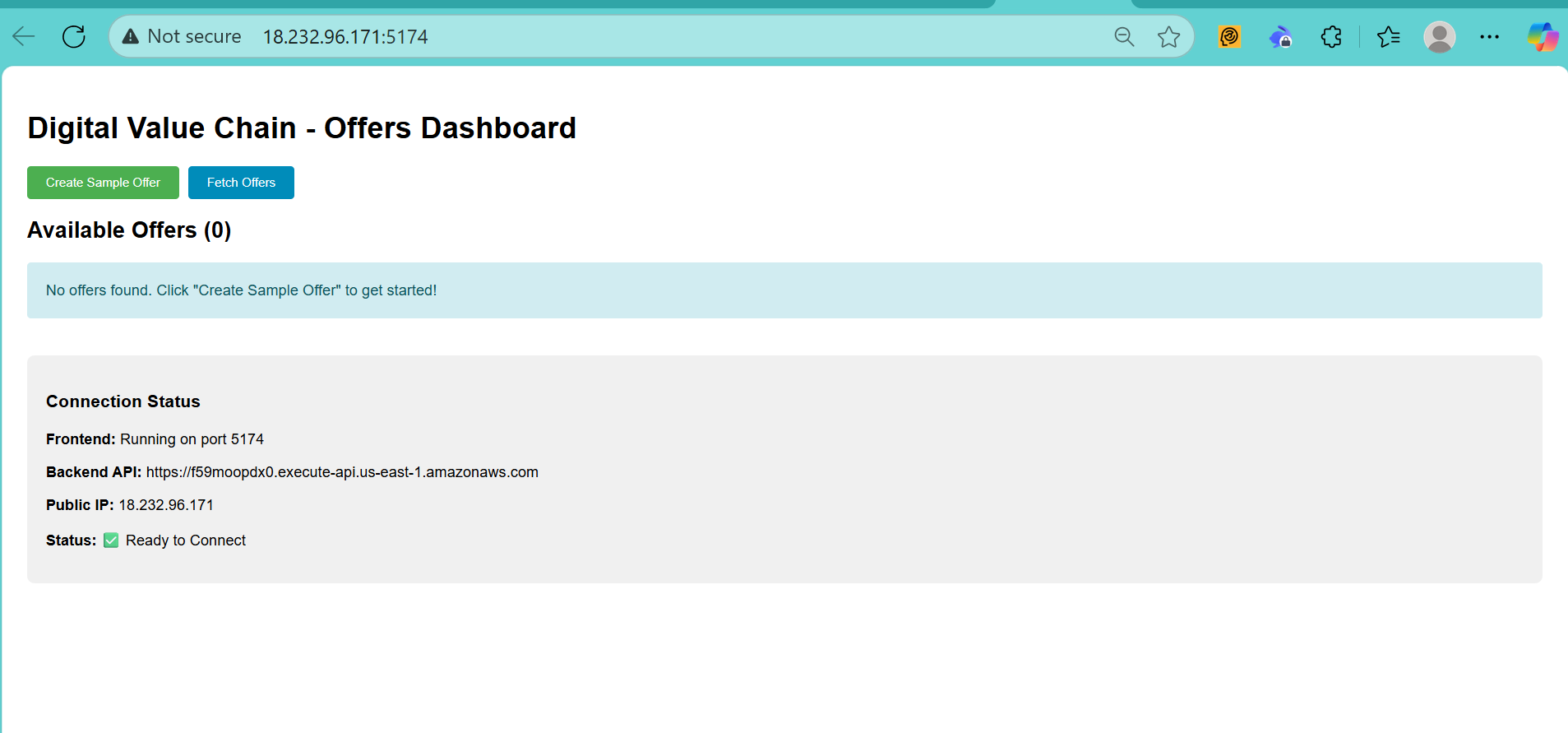

dashboard-empty.png Empty dashboard state with clear call-to-action ✅ Documented

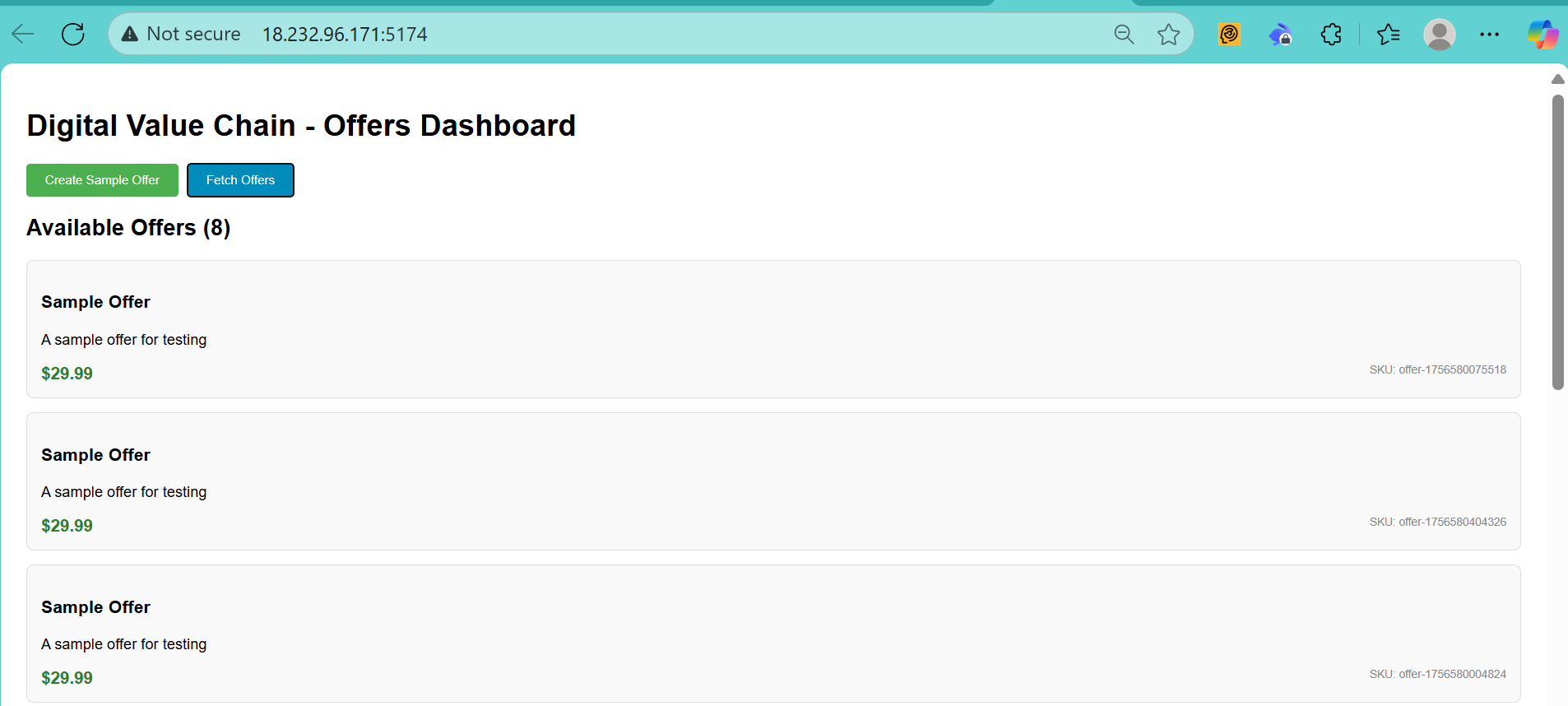

dashboard-populated.png Dashboard with 8 sample offers from DynamoDB ✅ Documented
api-health.png API Gateway endpoint returning health check ✅ Documented

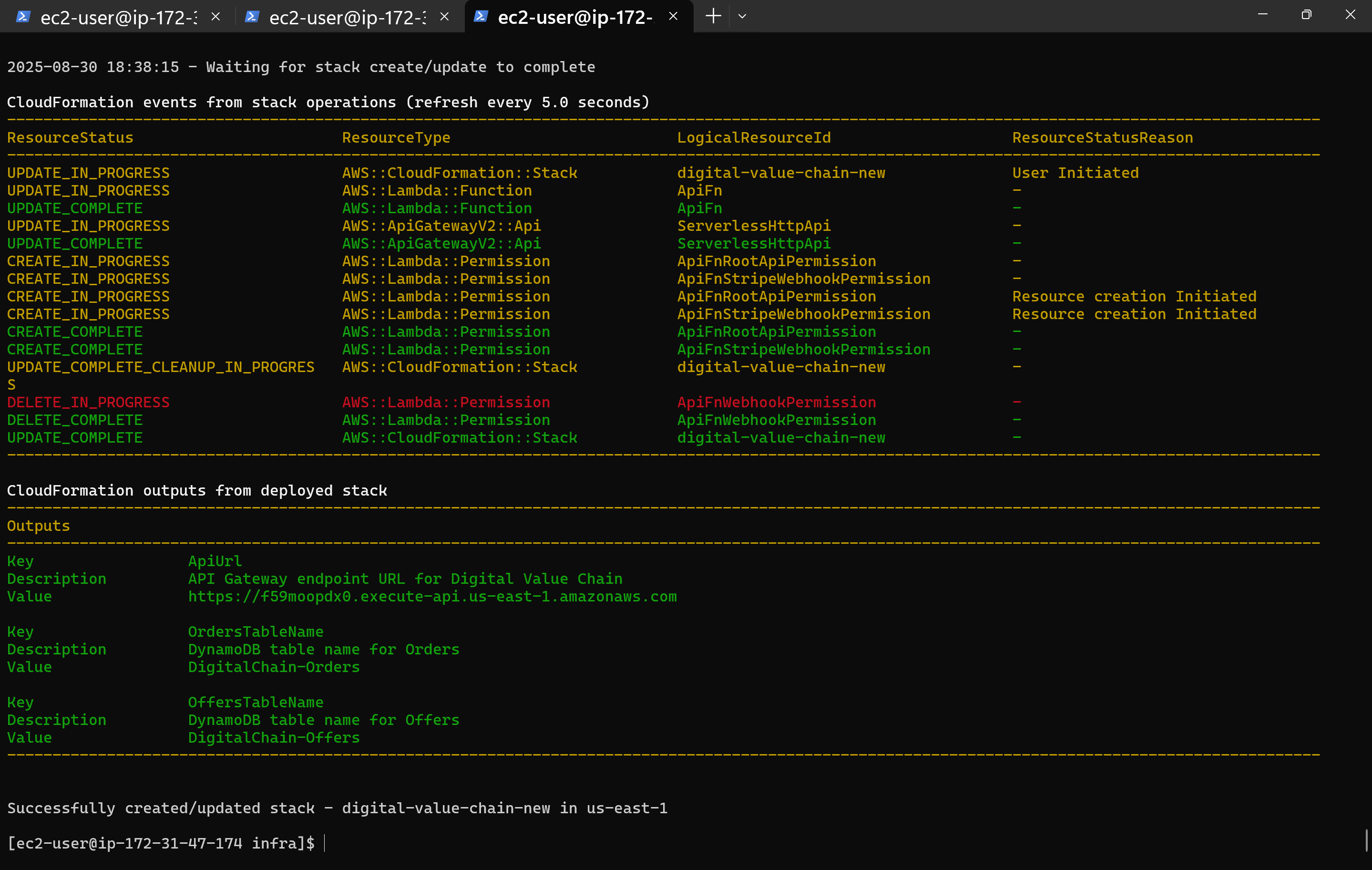

cloudformation.png AWS SAM CloudFormation stack deployment ✅ Documented
vite-server.png React development server with network access ✅ Documented
fastapi-backend.png Backend server running with request logging ✅ Documented

🏆 Project Highlights

This project demonstrates several key technical competencies:

Full-Stack Development

Cloud Architecture & Cost Engineering

Problem-Solving & Debugging

Modern Development Practices

This project showcases the future of software development where human creativity combines with AI efficiency to solve complex technical challenges rapidly and effectively.

Production Readiness & Sustainability

🚀 Future Enhancements

Technical Roadmap

Cost Engineering Enhancements

Business Enhancements

Built with modern technologies • AI-assisted development • Enterprise-ready architecture • Cost-optimized for sustainability
